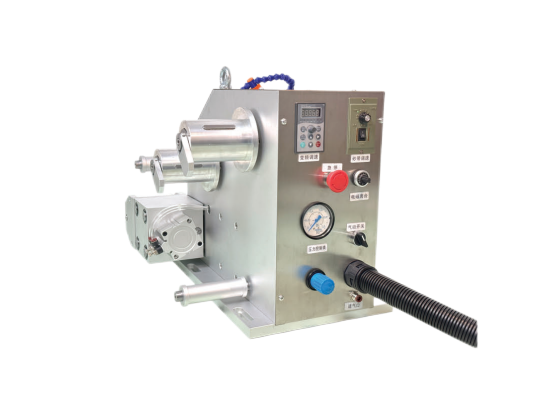

XYT-XD Mirror Roller Polisher

High-Precision Polishing Solution for Industrial Rollers

The XYT-XD Mirror Roller Polisher is an advanced surface finishing machine engineered for ultra-precision polishing of industrial rollers. Designed to deliver mirror-like finishes, it is ideal for chrome-plated rollers, ceramic rollers, tungsten carbide rollers, gravure rollers, and stainless steel rollers, among others.

Key Features

• Mirror Finish Capability: Achieves < Ra 0.01 μm surface roughness

• High Efficiency: Optimized for continuous, stable polishing

• Versatile Compatibility: Works with various roller materials and coatings

• Customizable Parameters: Adjustable speed, pressure, and polishing direction

• Integration Ready: Compatible with automation lines and CNC control systems

Applications

• Gravure printing industry

• Paper-making and film manufacturing

• Metallurgical and steel industries

• Optical roller processing

• Precision ceramic and carbon fiber components

Technical Specifications:

1. Model: XYT-XD

2. Abrasive Belt Width: 4 inch

3. Power Supply: 220V

4. Motor Power: 0.8 kW

5. Polishing Wheel Vibration Frequency: 0–50 Hz

6. Polishing Wheel Pressure: 0–0.6 MPa

7. Belt Feed Speed: 0–100 mm/min

8. Product Dimensions: 520 × 350 × 430 mm

9. Net Weight: 19 kg

Product Advantages:

1. Equipped with German-imported cylinders, pressure regulators, and air pressure gauges to ensure polishing stability and high precision.

2. The entire machine is made of high-strength aluminum alloy, making it both lightweight and structurally rigid — improving both machine stability and portability.

3. Powered by an independent motor drive system and SMC pneumatic cylinder, the unit enables precise pressure control. The stepless speed control system ensures smooth belt movement, featuring low noise, minimal abrasive consumption, and stable operation.

4. Compatible with various abrasive belts to meet polishing and grinding requirements for different materials.

5. The machine is designed for easy installation on lathes, grinding machines, or custom polishing fixtures, ensuring fast and convenient integration into existing setups.
