TYPEF:A050FC
SIZE:101.6MM*46M
N0. : 20241126-1

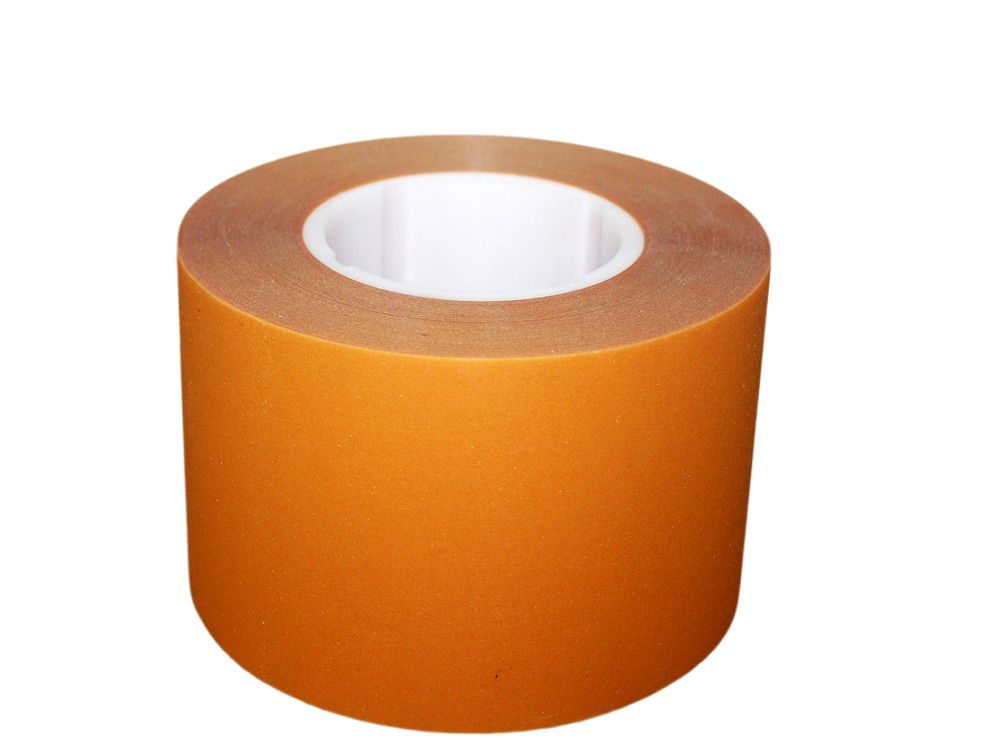

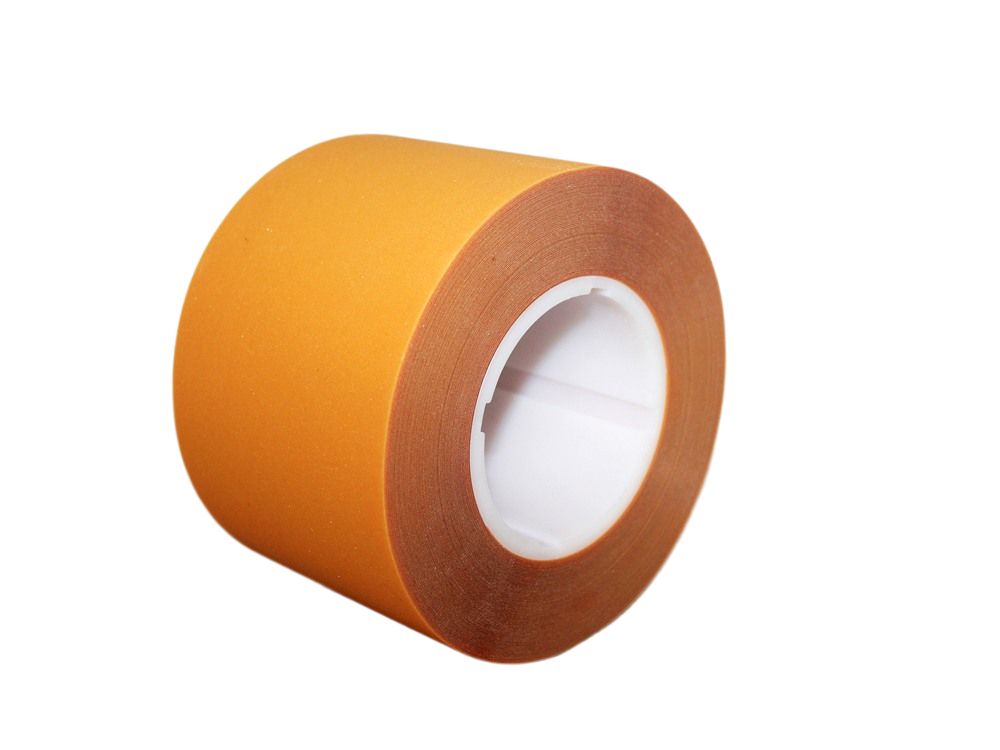

Polishing Belt Technology & Manufacturing Process
The polishing belt is manufactured using state-of-the-art precision coating technology. Micro, sub-micro, and nano-sized abrasive particles (including diamond, silicon carbide, and aluminum oxide) are uniformly dispersed in a high-performance polymer adhesive. This abrasive-adhesive mixture is then precisely coated onto a high-strength film substrate. The final product undergoes advanced cutting processes to achieve optimal dimensional accuracy and performance characteristics.

Product Features

1. Consistent Performance - Delivers highly uniform grinding results with exceptional reliability

2. High Abrasive Efficiency - Provides superior polishing performance for precision applications

3. Optimal Strength & Flexibility - Enables effective polishing of curved surfaces while maintaining structural integrity

4. Versatile Application - Suitable for both dry polishing and wet polishing (using water or grinding oil)

Key Applications

1. Motor Commutators - Effectively removes oxidation layers and contaminants from commutator surfaces

2. Rolls & Cylinders - Polishes metal, ceramic, hard alloy, and cast iron rolls with strong adhesion and high grinding efficiency

3. Hard Disk & Magnetic Heads - Provides durable polishing for magnetic heads and hard disk carbon layers with high processing efficiency

4. LCD Displays - Specialized for polishing LCD color filters, efficiently removing defects and surface contamination

5. Semiconductor Materials - Precisely polishes silicon wafer edges, eliminating damage layers and achieving low surface roughness

6. Engine Components - Delivers high-precision polishing for crankshafts and camshafts with excellent grinding performance
